Optistick Smart
Optistick Smart - Image 2
Optistick Smart - Image 3

Optistick Smart

Categories: ,

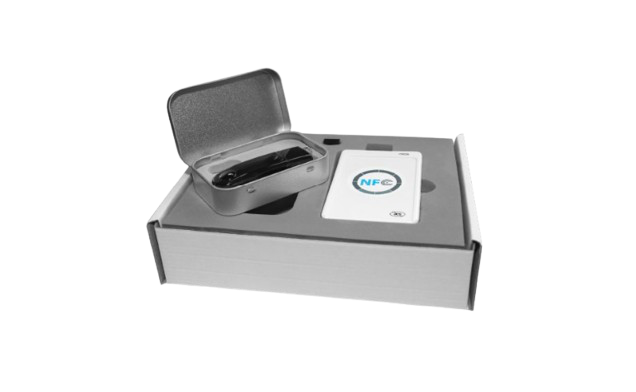

Optistick Smart

  • Allows rapid parameter copying between multiple drives
  • Onboard Bluetooth interface for PC and smartphone connection
  • Onboard NFC (Near Field Communication) for rapid data transfer

Product Overview

Description

OPTISTICK Smart: Copystick Feature
OPTISTICK Smart: Transfer data from smart phone to OPTIDRIVE via OPTITOOLS Mobile App
OPTISTICK Smart: Transfer data from OPTIDRIVE to smart phone via OPTITOOLS Mobile App
Overview
The OPTISTICKSmart is used for fast and accurate repeat drive programming. It can also be used to communicate with the Optidrive via the OPTITOOLS Mobile smartphone app and OPTITOOLS Studio.
Note: Parameters can only be copied between drives of the same product range and power rating (size).

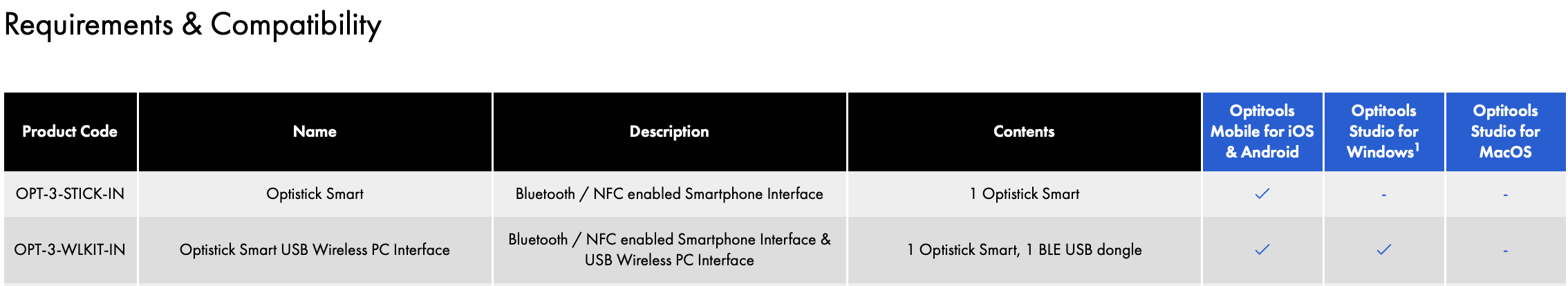

Compatibility
This Option is suitable for use on the following product ranges:
Optidrive P2 (ODP-2-…. Drives)
Optidrive Eco (ODV-3-… Drives)
Optidrive E3 (ODE-3-… Drives)
Model Code
OPT-3-STICK-IN
Compliance
Hereby, Invertek Drives Ltd declares that the radio equipment type Bluetooth Wireless Access Point, model OPTISTICKSmart, is in compliance with Directive 2014/53/EU. The EU declaration of conformity is available on request from your Invertek Drives Sales Partner.
The Optistick Smart facilitates real-time communication using Bluetooth technology between Optidrives and a PC running OptiTools Studio PC software or a smartphone with the OptiTools Mobile app. Download Optitools Software Here
